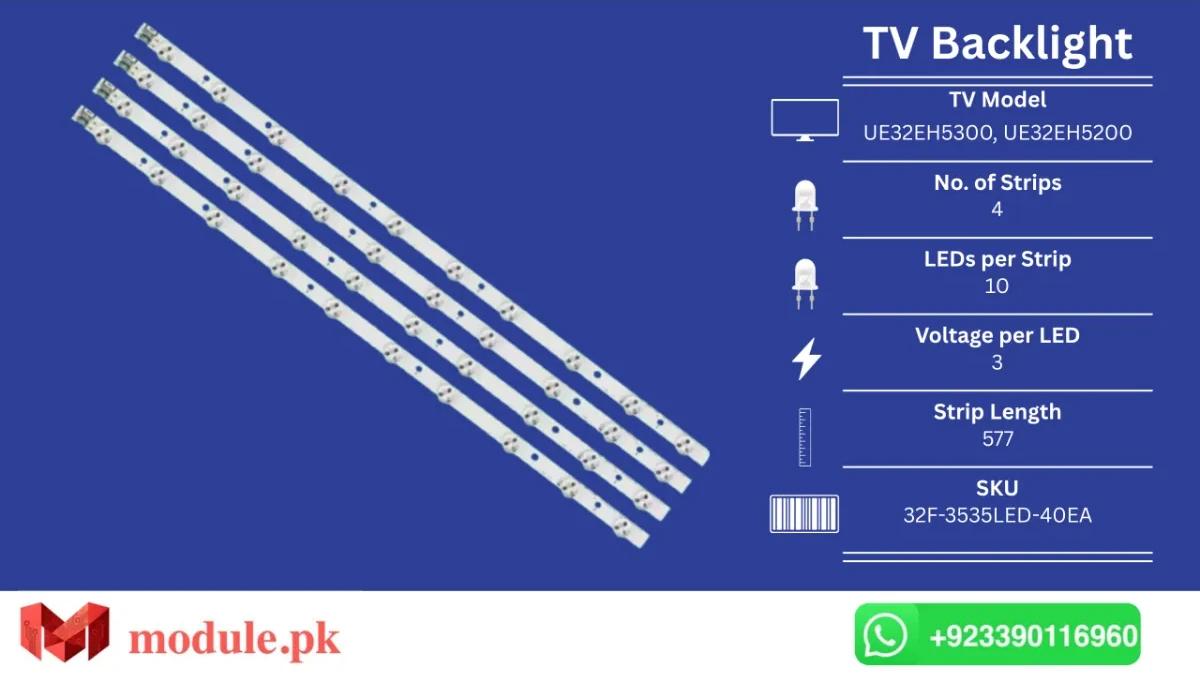

LED Backlight Strip Samsung 32", 3V, 577mm, UE32EH5300, UE32EH5200

SKU
LED Backlight Strip Samsung 32" - 3V - 577mm - UE32EH5300, UE32EH5200

Strip layout · 4 × 10 LED

40 total
S1
S2
S3
S4

About this part

Replacement LED backlight strip set for 32-inch Samsung TVs. Fits UE32EH5300 and UE32EH5200. A strip set: 4 strips, 10 LEDs, 3V per LED, 577mm. Serial 32F-3535LED-40EA.

Read the install guide

Key specs

Screen size
32inch
Strips × LEDs
4 × 10
Voltage per LED
3V
Strip length (mm)
577
All specifications

Specifications

Brand
Samsung
SKU / Serial
TV model
UE32EH5300, UE32EH5200
Screen size
32inch
Voltage per LED
3V
Num. of strips
4
Backlight type
LED Strip
Strip length (mm)
577
Num. of LEDs
10
Total Voltage
30

Buying and install guide

Checking Compatibility

Samsung reuses the same panel size across several chassis revisions — that includes models like UE32EH5300 and UE32EH5200 — so the screen size or model number alone won't always tell you which LED bar is fitted.

Before you order, compare your original LED bars against the listing: voltage, connector type, LEDs per bar, and the number of bars in a full set. Part numbers can be a moving target too — the same physical bar is often sold under more than one code, and not every matching code will be listed on this page. In a handful of cases, the only reliable way to confirm the exact bar revision is to open the set and check the strip itself.

Installing Your LED Strips

Fitting these strips doesn't call for any extra hardware in most cases. On the sets that do need double-sided tape to remount the bars, it comes pre-applied to the strip, so there's nothing else to source before you start.

Picture Gone but Sound Still Working?

A blank or black screen with normal audio is the textbook symptom of one or more failed LEDs on the backlight strip. To check, switch the TV on and shine a flashlight close to the screen — if you can just make out a dim picture or menu underneath, the panel and electronics are fine and a worn-out backlight strip is almost certainly the fix you need.

We stock LED TV backlight strips for a wide range of brands, Samsung included. Can't find your exact model here? Reach out on our Contact page or message us directly on WhatsApp and we'll help you track it down.

Warranty

We film this part working before it ships, and send you the video before shipment and before you pay.

How our warranty works
